Series 3D

The 3D series pumps is a general purpose design suitable for many applications including lubrication, fuel transport and burner service, low pressure hydraulic applications and hydraulic elevator service.   Pump shaft is generously sized to allow belt drive if desired (mechanical seal versions only).

This series is available in magnetic drive configurations.

3D SERIES
Nominal Flow Rate, GPM/LPM, at 500 PSI (34.5 BAR), 200 SSU (43 CST)


Size

SPEED- RPM
3500
2900
1750
1450
1150
960
106
12/46
10/36
4/16
-
-
-
118
17/67
14/52
6/24
4/17
-
-
137
29/108
23/85
11/42
8/30
-
-
156
44/165
35/132
18/68
13/51
9/34
-
187Y
55/209
44/167
23/87
17/66
12/45
8/32
187M
67/252
53/201
28/104
21/79
14/54
10/38
187
78/294
62/236
33/125
26/97
18/68
13/49
218L
99/376
80/302
42/159
32/121
22/84
16/61
218
126/477
102/385
55/209
43/163
31/117
23/88
250P
150/568
121/458
66/248
51/193
37/139
27/104
250
192/728
156/591
87/328
69/260
50/191
39/148
275E
218/824
177/669
98/372
78/295
57/217
44/168
275
-
212/801
119/452
95/361
71/269
56/212
312P
-
246/931
138/521
109/414
81/307
63/239
312
-
-
179/677
144/543
108/409
86/325
337
-
-
230/872
186/704
141/535
113/428
350
-
-
258/977
209/789
159/601
127/482
400P
-
-
310/1174
251/949
192/725
154/583
400
-
-
397/1501
322/1220
248/940
201/762

Series 3D Specifications

Casing-  High tensile, close-grained cast iron. Cast steel optional, sizes 156-400

Rotor Housing-  Pearlitic gray iron

Power Rotor-  Alloy steel, nitride hardened and thread ground

Idler Rotors-  Pearlitic gray iron, induction hardened and thread ground

Gaskets-  Cellulose and non-asbestos fiber

Seal & Bearing-   Type B: Buna N bellows mechanical seal, Buna N o-rings and standard external, permanently grease packed, deep groove ball bearing- recommended for distillate fuels and lubricating oil or hydraulic fluids.  Type H: Positive drive mechanical seal, fluoroelastomer o-rings and external high temperature, permanently grease packed, deep groove ball bearing.

Accessories-   Completely mounted, built to order pump/driver assemblies are available with baseplates, ANSI RF spool pieces, NEMA 'C' face adapters.

Outlet Pressure-  500 PSIG (34.5 BAR) maximum.  Minimum recommended differential pressure is 40 PSI (2.75 BAR).

Inlet Pressure-   Type B & H: 75 PSIG (5 BAR) maximum, distillate fuel, lube- sizes 106-187.  50 PSIG (3 BAR) maximum, distillate fuel, lube- sizes 218-400.  Type H: 40 PSIG (2.7 BAR) maximum, residuals and crude oil- sizes 106-187.  10 PSIG (0.7 BAR) maximum, residuals and crude oil- sizes 218-400.

Viscosity-  33 SSU (2.0 CST) minimum. Type B: 3000 SSU (650 CST) maximum (consider cold start). Type H: viscosities above 3000 SSU (650 CST).

Temperature-  Type B: 0 to180°F (-18 to 82°C).  Type H: 0 to 250°F (-18 to 121°C) at 1800 RPM or less, 0 to 225°F (-18 to 107°C) above 1800 RPM.

Drive-  Direct, belt or chain.  Sealless magnetic Drive configurations also available.

Rotation-  Clockwise facing pump shaft standard. Consult Imo for counterclockwise

Mounting-  May be foot mounted in any orientation. Flange mounting optional for horizontal or vertical installations.

Filtration-  Inlet strainers are required to keep contaminants and abrasives out of the pump. They must be selected in consultation with the strainer vendor to prevent pump starvation. Normally, 60 mesh (0.01 inch- 238 micron) for light and 1/8-3/16 inch (3-5mm) openings for heavy oils are recommended.

Maximum Speed-  Do not exceed 1800 RPM pumping residual fuels or crude oil due to the presence of abrasives and contaminants.

Size 106 118 137 156 187 218 250 275 312 337 350 400
Max.* RPM
5000 5000 4400 4400 4400 3600 3600 3600 2500 2500 2500 2500

* Assumes minimum inlet pressure requirements are met.

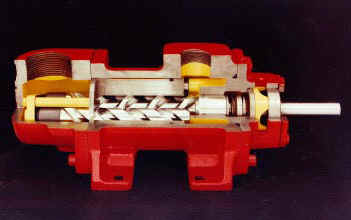

G3DB-187 shown with replaceable rotor housing (liner), single mechanical seal and external ball bearing.
